grid 100 Configurator

1. Select your mini modules here

MINI-PRESS

1U-width
2 x Hotswap Switches
2 x RGB LEDs
1.5mm PC plate
Flexible PCB
Gasket Mount

CYCLE-ENCODER

2U-width
20-step encoder
A pushuable button
Standalone processor
grid Magnetic Cap
ARGB-ring

CYCLE-JOYSTICK

2U-width
Analog joystick
Tension adjustable
Changeable cap
ARGB-ring
Max 1 per configuration

grid 100 supports up to

ONE CYCLE-Joystick Module

2. Rearrange or delete mini modules

Ver.CLASSIC

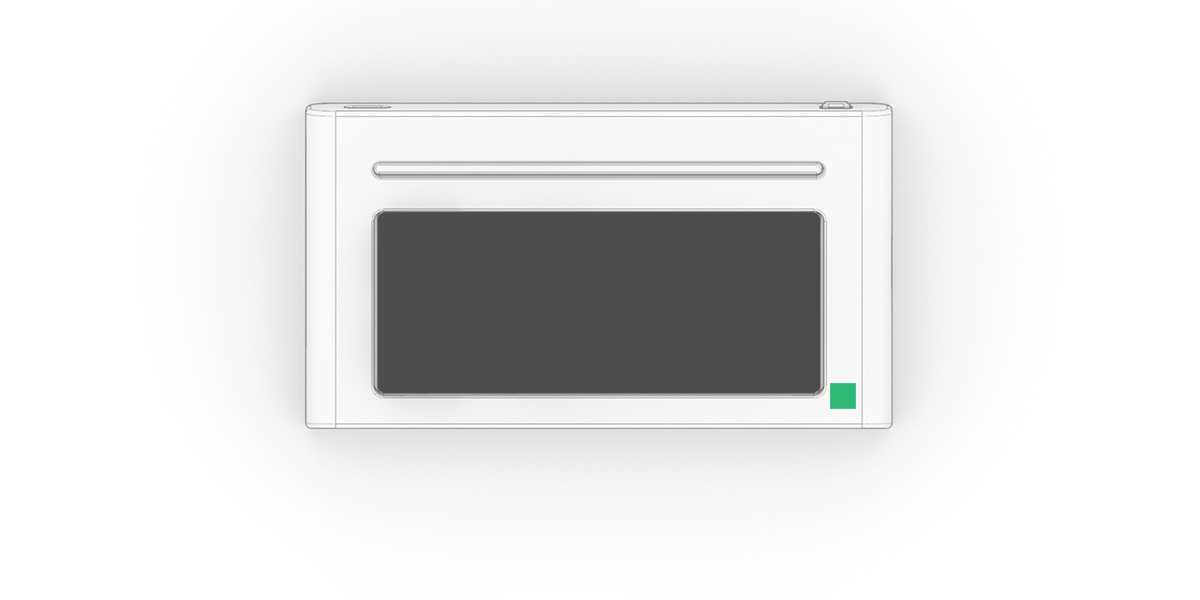

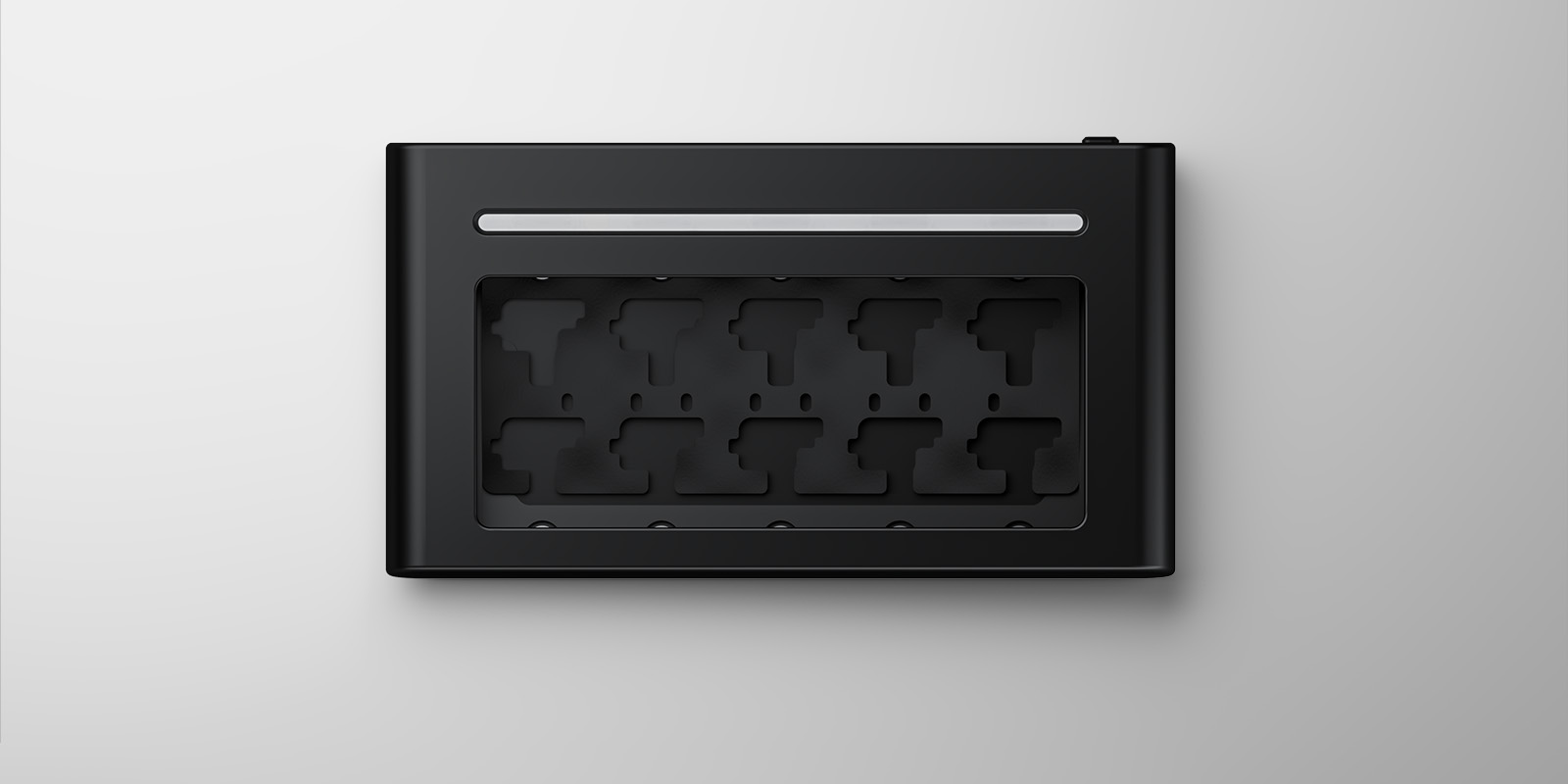

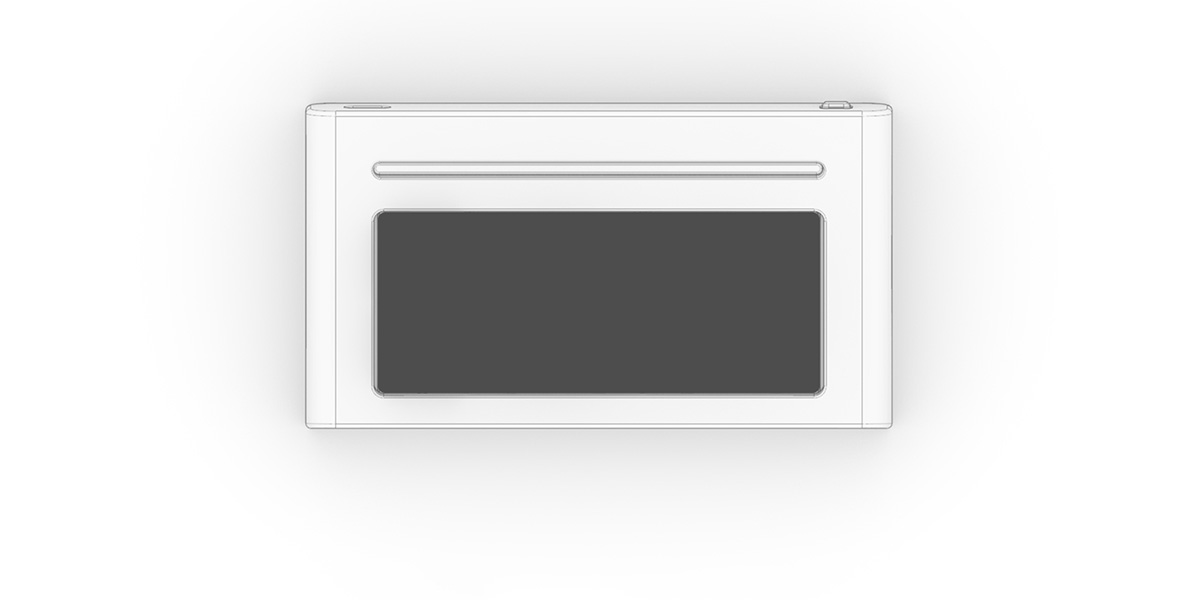

Ver.FLASH

E-white

E-white

Black

Black

Pine Green

Pine Green

Liquid Silver

Liquid Silver

3. Get your firmware & VIA JSON file

Pressing the Fn button while plug in USB cable will boot your grid 100 into reflashing mode. Use QMK Toolbox to flash the HEX file firmware. To customize keymap, macro & light effects, open Vial , or input the json file to VIA V1.3.1.

Click mini modules to config

Download
